Marine pump specialist Svanehøj is expanding its product portfolio for the emerging green ammonia market, and is launching what it believes to be the world’s first high-pressure centrifugal pump for ammonia fuel applications.
According to Svanehøj, growing interest in alternative fuels for maritime transport is driving a surge in demand for specialised critical components capable of handling highly corrosive and toxic carbon-free liquids in a safe and efficient way. Drawing on its experience in ammonia applications, Svanehøj’s ammonia fuel pump is capable of delivering a fuel injection pressure of up to 100 bar.
The new HP NH3 Fuel Pump is based on the design of Svanehøj’s patented deep-well low-pressure fuel pump, a centrifugal low-pressure pump, which has sold more than 1,000 units since its introduction, with 100 of those units being used for ammonia. The new pump has a small footprint of 2,100 x 780 x 1,450 mm, enabling it to fit the Tank Connection Space (TCS) in an ammonia fuel supply system.
Johnny Houmann, Chief Sales Officer, Svanehøj said: “We have long been encouraged by customers and partners to develop a high-pressure ammonia pump of the same high standard as our low-pressure fuel pump. Early in the R&D process, we determined that our existing centrifugal pump design would be the optimal solution in terms of efficiency and maintenance. As a result, we have developed a pump with a design that already has a proven track record, and we are confident it will meet our customers’ high expectations.”
Because ammonia is highly toxic and corrosive, it is crucial for shipowners and fuel system suppliers to ensure that onboard operations and maintenance are as safe as on conventionally fuelled vessels. To meet the highest safety standards, Svanehøj is introducing several innovative features. The HP NH3 Booster Pump is hermetically sealed with no mechanical shaft seals and designed with a magnetic coupling that ensures transmission of torque from the motor. The coupling containment shroud is made from magnesium-stabilised zirconium oxide, ensuring high temperature stability. For pumps installed in engine rooms or on deck, Svanehøj has added an optional fail-safe mechanism as a second barrier. In the unlikely event of a breach in the containment shroud, this mechanism will activate to contain the pumped media inside the coupling housing.
In terms of maintenance, the pump is fully drainable and can be lifted out in one piece. It is designed with only one media-lubricated and easily changeable ceramic ball bearing for all axial loads. For the power transmission, Svanehøj has a heavy-duty drive with a carbon-reinforced and easily accessible timing belt system.
Houmann concluded: “Although no commercial ships are operating on ammonia fuel yet, the maritime market has shown a growing appetite for investing in green ammonia solutions. Ammonia-fuelled ship engines will be commercially available by 2025, and at Svanehøj, we are proud to support the energy transition of shipping by offering both low- and high-pressure pump solutions for the emerging green ammonia market.”

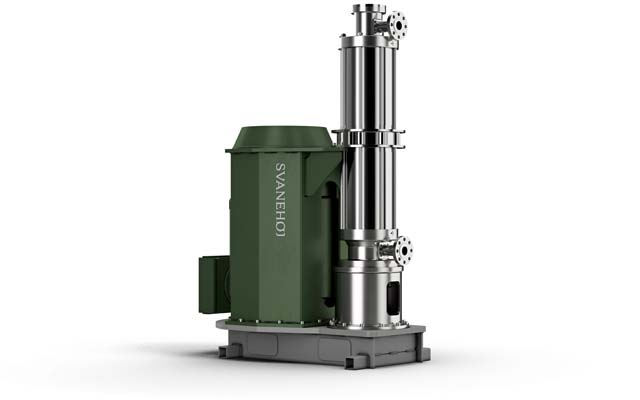

Image: Svanehøj fuel pump for ammonia-fuelled vessels (source: Svanehøj)
