MAN Cryo is supplying a liquid hydrogen gas fuel supply system to a 118.8m superyacht under construction by Dutch designer and builder Feadship.
Known as ‘Project 821’, the newbuilding is believed to be the world’s first hydrogen fuel cell superyacht. MAN Cryo’s fuel-gas system will store the hydrogen in liquid form, evaporate and heat it, and supply gaseous hydrogen to the fuel cell enabling zero-emission propulsion of the vessel. The company is a division of MAN Energy Solutions within engineering solutions for cryogenic equipment for the storage, distribution, and handling of gasses.
Henrik Malm, MD MAN Energy Solutions Sweden, said: “This notable project showcases MAN Energy Solutions’ leadership within the development of future-fuel systems for the maritime sector. In particular, MAN Cryo is setting new standards in sustainability and engineering with its system design and the innovative positioning of the vessel’s fuel tanks below deck. Congratulations to Feadship on its dedication to decarbonisation and pushing the green envelope within the superyacht segment.”
Although hydrogen fuel-cells have existed commercially for over six decades, no solution had previously been available within the maritime sector. Project 821’s fuel-cell technology can provide an entire week’s worth of silent operation at anchor, or emission-free navigation at 10 knots when departing harbours or cruising in protected marine zones with pure water being the only emission.
MAN Cryo faced a number of challenges during the project, in great part owing to the lack of existing design codes and standards to follow in order to get approval for its tank design. Normally, type C LNG tanks are designed according to IGF code, but this is not fully applicable to hydrogen. Instead, MAN Cryo approached Lloyds Register with a risk-assessment-based design that is considered safe and approved for placement below deck, a first of its kind in the world and just the second ever for a marine liquid-hydrogen project.
MAN Cryo’s scope of supply for the project includes:
- a 92 m3 vacuum-insulated type C tank, storing liquid hydrogen at -253 deg Celsius;
- a tank connection space (TCS) including necessary process equipment such as vaporisers, control valves, safety valves, etc;
- a bunker station, enabling shore-to-ship bunkering of liquid hydrogen;
- control and automation systems, including the ‘tank prediction tool’, a feature that simulates tank pressure and tank-filling levels and helps crew to predict and plan bunkering operations;
- a vent mast;
- interconnecting hydrogen piping.
Sofia Liedholm, Project Manager MAN Cryo, said: “The alternative design approval process proved challenging from time to time but – thanks to good cooperation between MAN Cryo, Lloyd´s Register and Feadship – we managed to successfully resolve all issues. MAN Cryo is a frontrunner when it comes to marine fuel systems and, from this project, we now have further knowledge to bring with us into whatever the next opportunity will be to develop a more sustainable marine sector.”

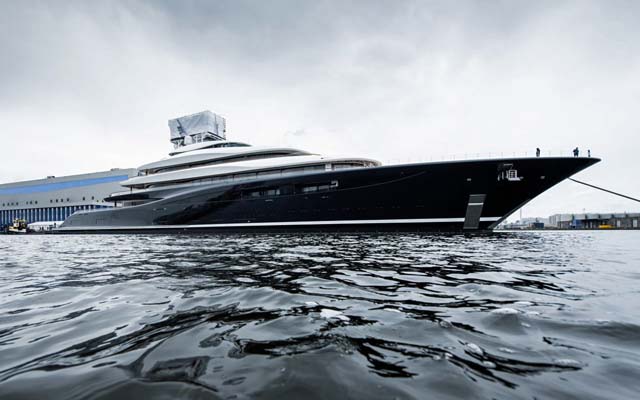

Image: Project 821 superyacht (source: MAN/Feadship)
